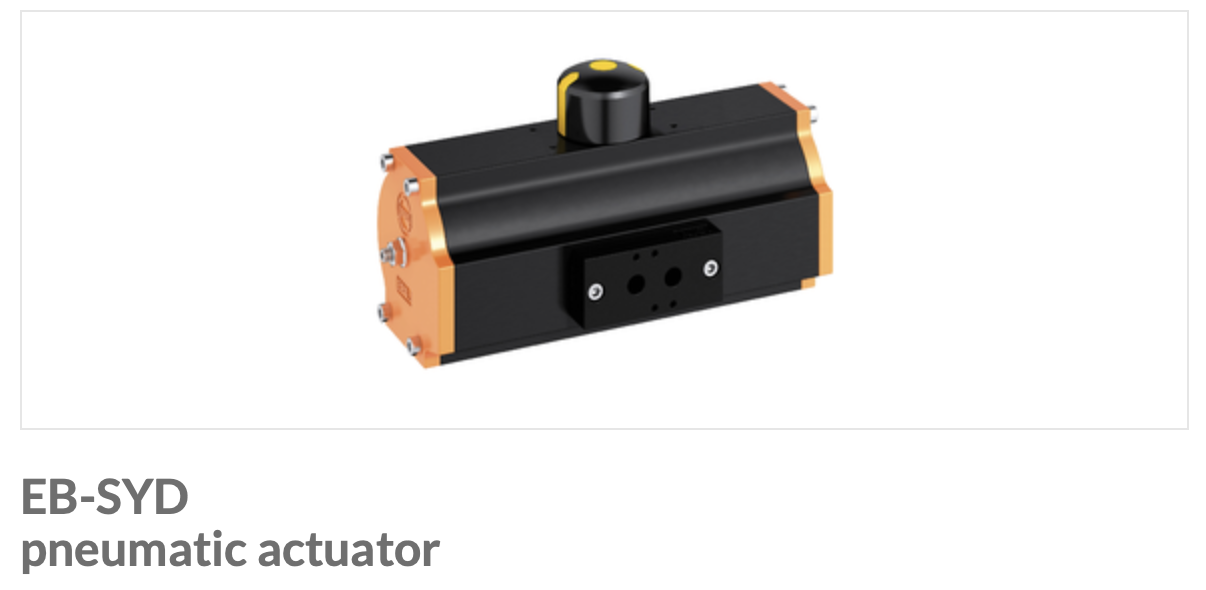

EB-SYD pneumatic actuator
EB-SYD
pneumatic actuator
// Product information //
EB-SYD
Pneumatic Actuator
The EB-SYD series includes almost 9 sizes, which are manufactured according to the principle of the double swingarm.
Technical features
Torque Range:
27 - 9768 Nm
End position adjustment:
End position "On" or end position "To" can be precisely adjusted to -8° / +3°
Control pressure:
min. 2.5 bar, max. 8 bar
min. 0.25 MPa, max. 0.8 MPa
min. 36.3 psi, max. 116 psi
min. 0.25 MPa, max. 0.8 MPa
min. 36.3 psi, max. 116 psi
Temperature range:
-20 °C to +80 °C (standard)
-40 °C to +80 °C (low temperature)
-15 °C to +120 °C (high temperature)
-40 °C to +80 °C (low temperature)
-15 °C to +120 °C (high temperature)
Control Medium:
Filtered compressed air or inert gases, dry or oiled.
The pressure dew point (according to ISO 8573-1:2010, class 3) must be ≥ -20 °C or at least 10 °C below ambient temperature.
The maximum particle size (according to ISO 8573-1:2010, class 5) must not exceed 40 μm.
For switching cycles ≥ 4/min.: oil
The pressure dew point (according to ISO 8573-1:2010, class 3) must be ≥ -20 °C or at least 10 °C below ambient temperature.
The maximum particle size (according to ISO 8573-1:2010, class 5) must not exceed 40 μm.
For switching cycles ≥ 4/min.: oil
