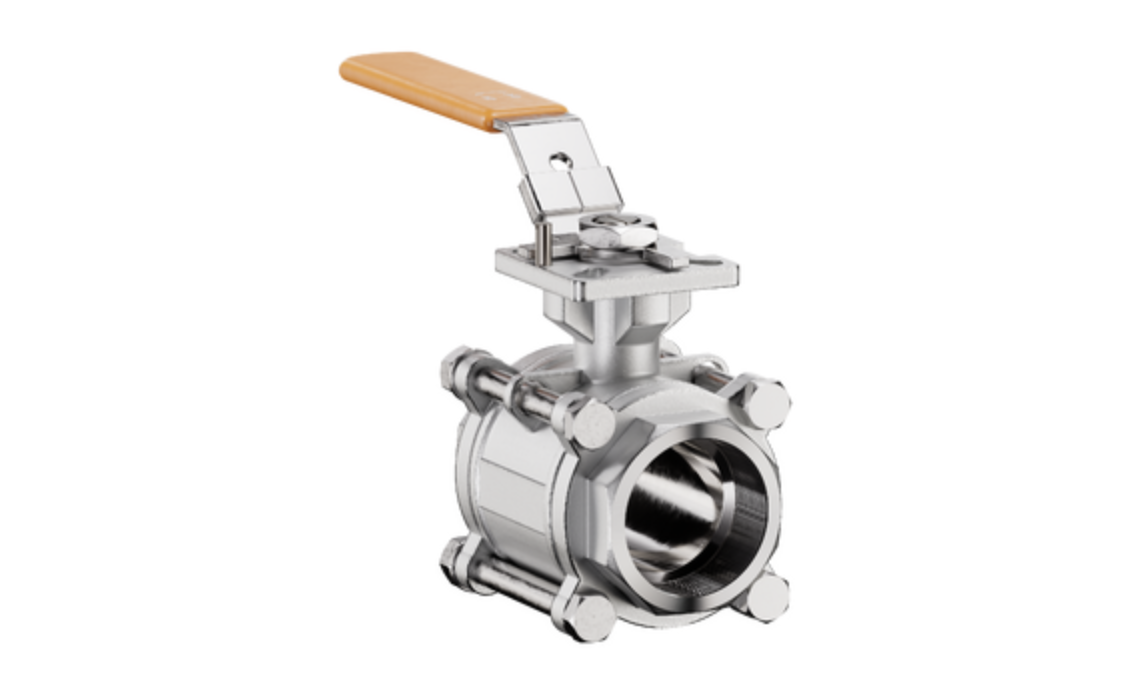

V-3MH 3-piece ball valve
V-3MH
3-piece ball valve
// Product information //
V-3MH
3-Piece Ball Valve
The V-3MH 3-piece ball valve is characterized by its versatility, robustness and easy maintenance. The V-3MH is ideal for safely shutting off pure, neutral or aggressive liquids, gases or vapors.
Technical features
Nominal diameters:
DN 8 - DN 100
NPS 1/4 - 4
NPS 1/4 - 4
Temperature range:
-10°C to +180°C
(depending on pressure, medium and material)
(depending on pressure, medium and material)
Pressure rating:
63 bar (DN 8 - DN 50)
40 bar (DN 65 - DN 100)
40 bar (DN 65 - DN 100)
Connection type:
Threaded end, welded end
Others on request
Others on request
Passage:
Full bore
Housing design:
3-piece
Housing Material:
Stainless Steel
Leak test:
EN 12266 (Leak Rate A)
Marking:
EN 19
Head flange:
EN ISO 5211
