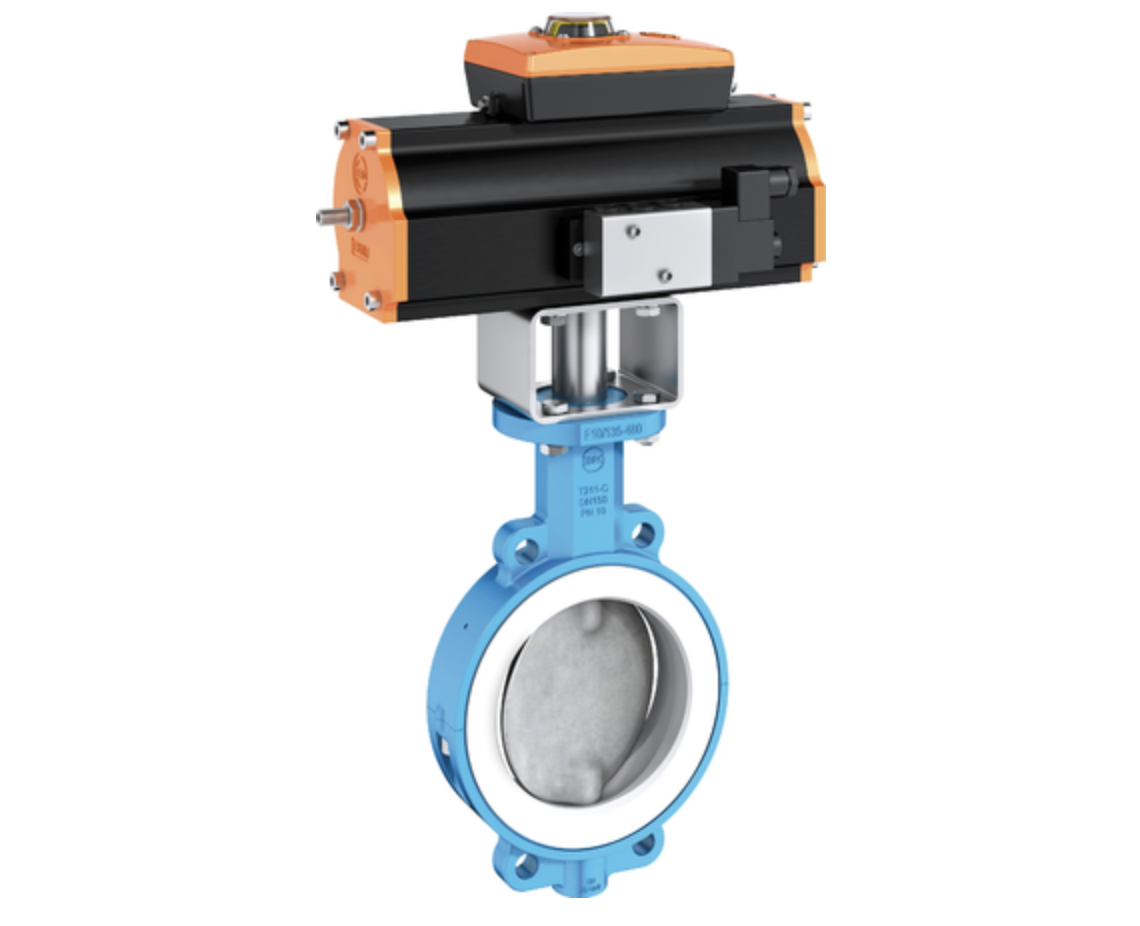

T 211-C PTFE Valve
T 211-C
PTFE Valve
// Product information //
T 211-C
PTFE Valve
PTFE-lined wafer type valve for toxic and highly corrosive media.Specially designed for the chemical industries.
Technical data
Nominal diameter:
DN (40)50 - DN 300
Face-to-face:
EN 558 Series 20
Flange connection:
EN 1092 PN 10/16
ASME Class 150
ASME Class 150
Flange Surface Design:
EN 1092 Form A/B
ASME RF, FF
ASME RF, FF
Top flange:
EN ISO 5211
Marking:
EN 19
Tightness check:
EN 12266 (Leakage Rate A)
Temperature range:
–40 °C to + 200 °C (depending on operation pressure)
Max. Operating pressure:
max. 10 bar (16 bar for spec. version)
