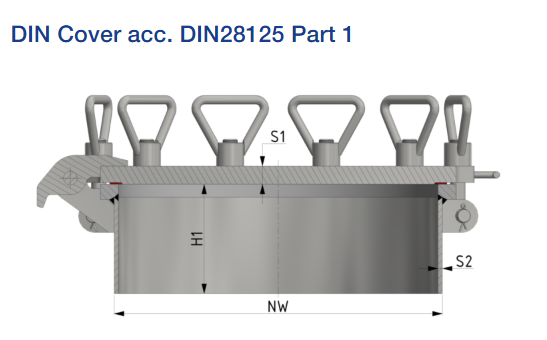

Standard design

• Wetted material: 1.4571
• Attachment parts: 1.4301
• Stainless steel triangle nuts
• Klingersil C-4430-gasket
• Flat gasket surface (shape VEC)
• Hinge and handle
• Neck length (H1) 200 mm
• Surface unpolished, glass-bead blasted; from NW600 unpolished, pickled
• With EU-approval (Modul G) acc. PED 2014/68/EU
• Design Code: AD 2000-Merkblatt

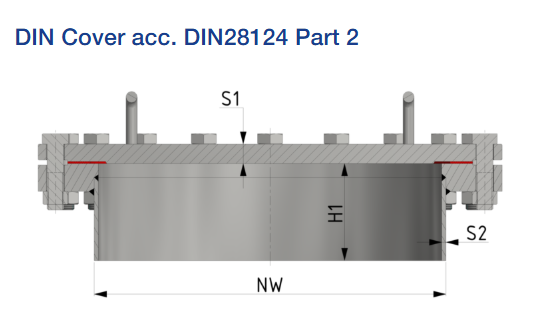

Standard design

• Wetted material: 1.4571
• Attachment parts: 1.4301
• Stainless steel hex bolts
• Klingersil C-4430-gasket
• Flat gasket surface (shape MH)
• Without hinge, with two handles on the lid
• Neck length (H1) 200 mm
• Surface unpolished, glass-bead blasted; from NW600 unpolished, pickled
• With EU-approval (Modul G) acc. PED 2014/68/EU
• Design Code: AD 2000-Merkblatt
